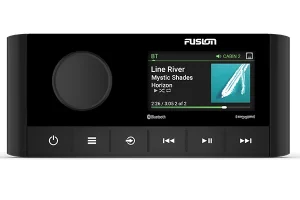

Stereo Specifications
|
| Physical dimensions (HxWxD) |
MS-RA60: 2.68″ x 6.18″ x 4.06″ (68 x 156.9 x 103.2 mm)
MS-RA210: 2.68″ x 6.18″ x 4.99″ (68 x 157 x 126.6 mm) |
| Weight |
MS-RA60: 11.1 oz (316 g)
MS-RA210: 12.4 oz (350 g) |
| Water rating |
IPX6 and IPX7 (front panel only, when properly installed) |
| Power input |
10.8-16 VDC |
| Operating temperature range |
32° to 122° F (0° to 50° C) |
| Current (max.) |
15 A |
| NMEA 2000® LEN |
MS-RA210: 1 (50 mA) |
| Bluetooth® wireless range |
Up to 30 ft (10 metres) |
| ANT wireless range |
Up to 10 ft (3 metres) |
| Wireless frequencies/protocols |
Bluetooth 2.4 GHz @ +12 dBm nominal
ANT 2.4 GHz @ +7 dBm nominal |
| Compass-safe distance |
5.9″ (150 mm) |
| Display |
MS-RA60: 2.3″ perimeter bonded monochrome dot matrix LCD
MS-RA210: 2.7″ optically bonded colour LCD |
| Built-in amplifier |
Class-D (minimum 4 Ohm impedance) |
| Peak power |
MS-RA210: 200 W
MS-RA60: 180 W |
| Rated power output (4 Ohm) |
MS-RA60: 22 W rms x 4 @ 14.4 V input < 10% THD
MS-RA210: 26 W rms x 4 @ 14.4 V input < 10% THD |
| Fusion-Link™ control |
MS-RA60: Yes (with smartphone and Garmin watch)
MS-RA210: Yes (with MFD, smartphone and Garmin watch) |
| Built-in Digital Signal Processing |
MS-RA210: Yes (with preconfigured DSP profiles) |
| Multi-Zone™ technology |
2 zones |
| Bluetooth wireless technology |
Yes |
| ANT wireless technology |
Yes |
| DAB+ ready |
MS-RA60: Yes (DAB tuner built in)
MS-RA210: Yes (requires DAB100A antenna module) |
| SiriusXM-ready |
MS-RA210: Yes (requires SiriusXM Connect vehicle tuner) |
| Multi-language interface |
MS-RA60: Dutch, English, French, German, Italian, Spanish
MS-RA210: Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR/PT), Slovenian, Spanish, Swedish, Thai, Turkish |
| NRX remote compatibility |
MS-RA210: yes |
| Software updates |
MS-RA60: Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link app
MS-RA210: USB |
| Warranty |
1 year |
| Sources |
MS-RA60: AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only)
MS-RA210: AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x1/MTP/SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner)/DAB+ ready (available in Europe and Australia only) |
| Auxiliary input |
One RCA input (AUX) |
| NMEA 2000 |
MS-RA210: 1 port |
| USB 2.0 |
MS-RA210: 1 port |
| SiriusXM satellite radio |
MS-RA210: 1 port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather) |
| AM/FM radio |
One Motorola antenna connector port |
| Speaker |
MS-RA60: 4 x speaker connections (2 zone amplified)
MS-RA210: 4 x speaker connections (2 zone amplified) |
| RCA Pre-out (left, right and subwoofer) |
MS-RA60: 1 zone (requires external amplification)
MS-RA210: 2 zones (requires external amplification) |
| Line out |
MS-RA60: Zone 1 (L + R, requires external amplification)
MS-RA210: Zone 1, Zone 2 (1 x L + R per zone, requires external amplification) |
| Subwoofer out |
MS-RA60: Zone 1 (requires external amplification)
MS-RA210: Zone 1, Zone 2 (requires external amplification) |
| Line out |
MS-RA60: Zone 1 (L + R, requires external amplification) |
| Subwoofer out |
MS-RA60: Zone 1 (requires external amplification) |

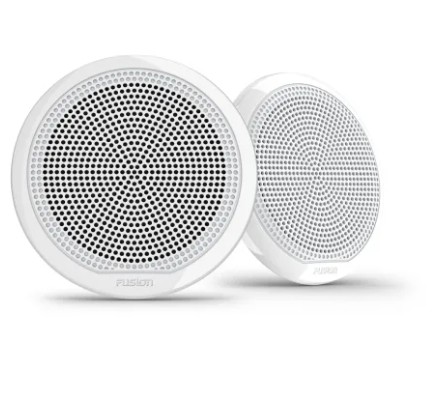

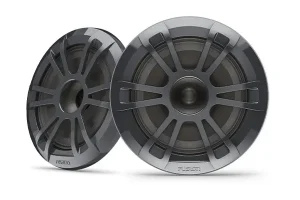

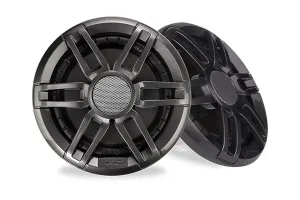

Speaker Specifications
|
| Physical dimensions (HxWxD) |
EL Classic Speaker: 6.93″ x 2.26″ (176 x 57.5 mm)
EL Sports Speaker: 6.93″ x 2.32″ (176 x 59 mm)
XS Classic Speaker: 6.97″ x 3.19″ (177 x 81 mm)
XS Sports Speaker: 6.97″ x 3.27″ (177 x 83 mm) |
| Water rating |
IP65 |
| Configuration |
EL Speaker: Full range
XS Speaker: Coaxial |
| Speaker size |
6.5″ |
| Peak power (Watts) |
EL Speaker: 80 W
XS Speaker: 200 W |
| RMS power (Watts) |
EL Speaker: 20 W
XS Speaker: 50 W |
| Sensitivity (1 watt/1 metre) |
EL Speaker: 88 dB
XS Speaker: 91 dB |
| Frequency response |
EL Speaker: 45 Hz-16 kHz
XS Speaker: 80 Hz-18 kHz |
| Nominal impedance |
4 ohm |
| Recommended amplifier power (RMS) |
EL Speaker: 20-40 W/Ch XS Speaker: 20-150 W/Ch |
| Operating temperature range |
32° to 122° F (0° to 50° C) |
| Voice coil diameter |
EL Speaker: 0.79″
XS Speaker: 1.18″ |
| Cone material |
Polypropylene cone with cloth surround |
| Tweeter type |
XS Speaker: Aluminium dome |
| Compass-safe distance |
EL Speaker: 100″ (254 cm)
XS Speaker: 122″ (310 cm) |
| Warranty |
EL Speaker: 1 year
XS Speaker: 3 years |
| Mounting diameter clearance |
EL Speaker: 5.12″ (130 mm)
XS Speaker: 5.31″ (135 mm) |
| Mounting depth clearance |
EL Speaker: 1.69″ (43 mm)
XS Speaker: 2.64″ (67 mm) |
| Sealed enclosure volume |
XS Speaker: 0.28 cubic ft (8 L) |
